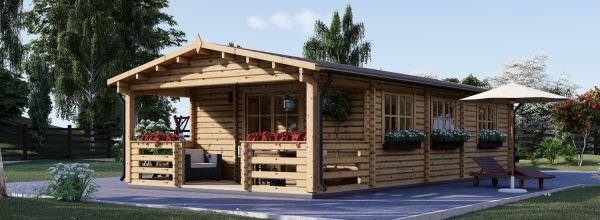

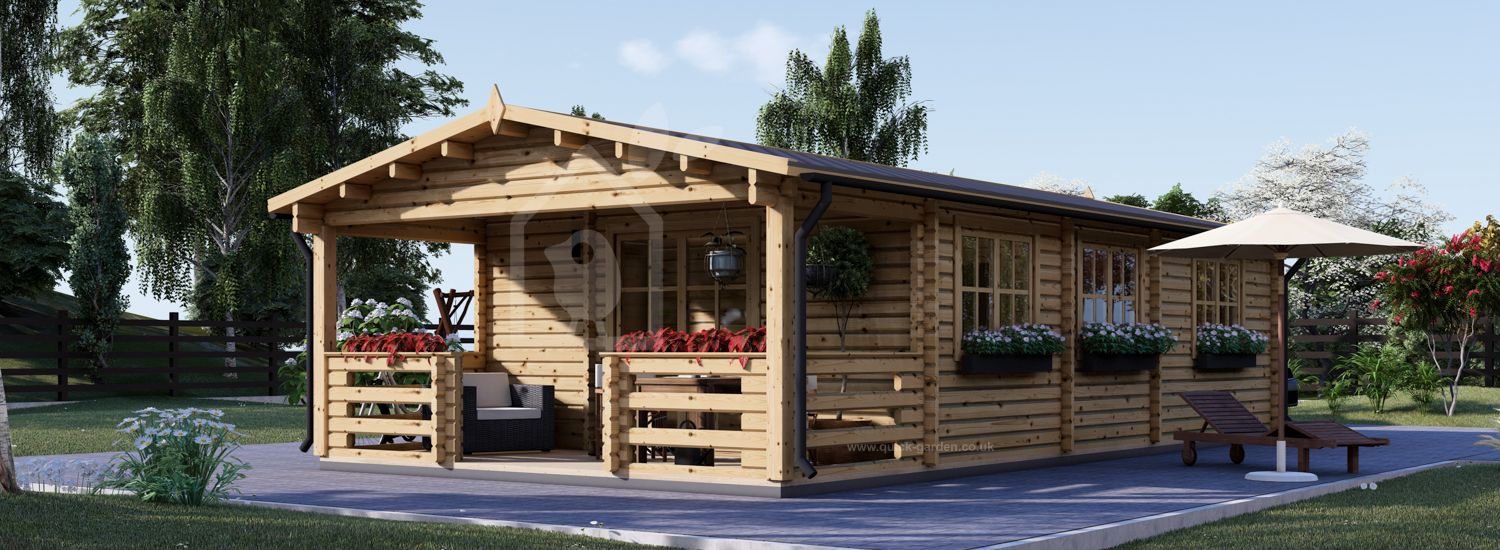

Residential Log Cabin HYMER (66 mm), 42 m² + 10 m² Terrace

As an alternative to our concrete foundation, we offer a custom-made, pre-treated timber frame foundation for mounting our buildings on.

Timber frame base:

• Allows you to level the ground conditions and prevent moisture penetration

• Is very convenient when a concrete base is not an option

• Is more affordable & requires less time and construction materials to set up than a concrete base

• Is ideal for creating a larger platform that could be extended into a terrace or a seating area.

We offer timber frame base in 2 different options:

• With PVC plots or

• With METAL screws.

What's the difference?

While setting the timber frame base with PVC plots is available only on an even surface (compacted ground, concrete blocks or paving, metal or concrete piles), fixing the foundation with metal screws can be achieved despite the evenness of the ground. In general, choosing the metal screw option simplifies the construction process and allows to save time and costs. High installation speed is another key advantage of screw piles, as this base is ready for use immediately after installation.

The timber frame consists of:

1.Wooden beams (44x140 mm)

2.Adjustable pillars or metal screws (depending on the option chosen)

3.Screws (4x50 mm)

4.Screws (6x120 mm)

5.Breathable membrane

Terrano metal panels work on any roof that’s not completely flat– this roof covering is sleek, easy to install, and offers reliable protection from the elements. The contemporary appearance finishes the look of the model, while the panels are associated more with the traditional method of roof coating. The smooth surface reflects the light, adding to the functionality of the thin (around 0,5 mm thick) layer of covering.

The metal roofing should be installed on an even, carefully-prepared base.

Maximal insulation
Upgrade your cabin or garage with German-made WinkHaus® UPVC windows and doors. The exterior is grey and the inner side is white. These windows and doors are made employing the latest KBE system_70 technology, meaning our UPVC windows and doors have a 70mm thick 5-chamber profile and 24mm double glazing filled with argon gas. These features guarantee maximum thermal and noise insulation (noise level up to 35DB).

Building regulation friendly
The overall heat transfer coefficient (U-Value) of 1.4 W/(m²K) of WinkHaus PVC windows meets all Building regulation requirements.

German quality
WinkHaus® is a family business founded in 1854 and has vast experience in making windows and doors. Quality is guaranteed by ISO 9001:2008, ISO 14001:2004, DIN EN ISO 9001:2000 and DVC 189G certificates.

This storage shed, made of slow-grow conifer timber, is the most popular accessory in our range. Thanks to its functionality they are very popular among our customers. This shed is easily attachable to all our cabins and garages and provides you with the space necessary to store your belongings. This shed is made of 28mm wall boards and equipped with 20mm thick tongue & groove roofboards and floorboards. External dimensions: 161cm (width) x 273cm (depth) x 190cm (height). Accessory assembly service is only available upon choosing the main product installation service.

Heavy duty roof covering
Protect your cabin, garage or carport roof with Shinglas® 3mm thick 5-layer bitumen shingles. Our shingles are made from a fibreglass mat base and are covered with a durable bitumen mixture from both sides. The bottom layer consists of a cold-resistant self-adhesive bitumen mass, owing to which the shingles stick to the roof surface very firmly. The top layer is covered with mineral granules. These features ensure that Shinglas® bitumen shingles provide durable protection and a pleasant appearance.

Superior quality
The international ISO 9001:2008 and European standard EN544 guarantees the quality of the Shinglas® bitumen shingles. Moreover, the shingles are resistant to open flames and have a much better thermal and noise insulation in comparison with other roof covering materials.

Easy installation
It is very easy to lay Shinglas® bitumen shingles on your cabin, garage or carport roof. Simply take a single sheet, remove the protective tape, attach it to the roof and fix with nails.

We also provide an underlay to place underneath the roofing shingles (1m x 10m). It will increase the lifespan of your roof covering and ensure the longevity of the achieved aesthetic look.

Xtratherm/Celotex/Kingspan thickness insulation boards for the roof and floor, which will make your building warmer in colder periods and cooler during the hot summer. The insulation boards are placed between the roof boards and the roof covering material (i.e. the shingles) and under the floorboards. Roof and floor insulation consists of insulation boards only.

Ecological treatment for the interior
Treat your cabin or garage with an ecological-friendly RP Wood® clear treatment. This treatment is ideal for protecting the interior of your log cabin or wooden garage as it consists of materials that are friendly to the environment and you, with the added bonus of it protecting your cabin or garage from mould. Unlike other treatments available on the market this treatment is virtually odourless. The treatment comes in cans and needs to be applied after the building has been completed.

Please note, this treatment only serves as a first protection for the wood against rot, mold and insects. It does not fully protect the cabin from environmental effects, therefore paint/stain needs to be applied on top.

Maximal insulation
Upgrade your cabin or garage with white (both exterior and interior) German-made WinkHaus® UPVC windows and doors. These windows and doors are made employing the latest KBE system_70 technology, meaning our UPVC windows and doors have a 70mm thick 5-chamber profile and 24mm double glazing filled with argon gas. These features guarantee maximum thermal and noise insulation (noise level up to 35DB).

Building regulation friendly
The overall heat transfer coefficient (U-Value) of 1.4 W/(m²K) of WinkHaus PVC windows meets all Building regulation requirements.

German quality
WinkHaus® is a family business founded in 1854 and has vast experience in making windows and doors. Quality is guaranteed by ISO 9001:2008, ISO 14001:2004, DIN EN ISO 9001:2000 and DVC 189G certificates.

Get that luxury roofing look with the extremely affordable German madeThysenkrupp® Kingas metal roofing. The key advantage of Thysenkrupp®Kingas metal roofing is that it looks like ceramic tiles but weighs up to10 times less (4kg per square metre only), is extremely durable and additionallymuch cheaper than its competitors. Quality is guaranteed by its ISO14001:1996certificate.

4-layer Thysenkrupp® Kingas roofing sheets are 0.6mm thick and composed ofa steel core, protective zinc layer, protective varnish and a decorativeglaze on top.

Thysenkrupp® Kingas roofing is available in red, black or green.

Thysenkrupp® Kingas roofing comes in cut-to--measure-sheets and suppliedwith all the necessary battens and fixings, making installation very easy.

Add more light to your cabin or garage by installing a wooden OptiLight 55cm x 78cm skylight, which comes with the necessary flashing kit. If your order the installation service for your cabin, the installation service for the skylight is £200 each.

Gutter Systems Assembly Instruction

Gutter Systems Set

Gutters are a critical element for a log cabin. They are used for draining water and ensuring the cabin’s safety, aesthetics and energy efficiency. All these requirements are easy to fulfil with the Ruukki steel guttering system. This system is one of the most innovative and simply the best in the market. What’s so good about it?

Only the best materials
The special steel is used in manufacturing. It has a double-sided coating and is exceptionally durable. It has a high resistance to external factors such as corrosion, UV rays and scratches

Well-thought-out solutions
The product consists of several elements that form a single functional and modern unit. The package of the gutter system includes all components (gutters, joints, brackets, angles, etc.) needed for each particular product.

Easy and fast assembly
Flamingo elements are made with care for the smallest detail and fit each other perfectly. Just like baby blocks

* Please note that the guttering kit does not include installation service

Tikkurila Ultra Classic is a paint that provides a high level of durability and protection for wooden surfaces. Its semi-mat finish, available in three colors: clear, brown, yellow or white. TIKKURILA technology allows the paint to remain intact regardless of weather conditions, without chipping or cracking over time, and allows the wood to resist any water stress.

Technical informations :

- Density: Approx. 1.3kg / l, ISO 2811

- Proportion of solids by volume: Approx. 41%

This paint is intended for untreated natural wood or surfaces previously treated with other paints. It can be applied by spray, brush or roller. Drying in just one hour, it will take two to four hours between each coat under normal weather conditions. Allow longer drying time in a humid environment.

The paint comes in cans and needs to be applied after the building has been completed.

Save your time and get all you need in one package so you can start enjoying your cabin or garage right away. This package includes:

-          Laying a solid concrete base (inc. materials)

-          Main structure installation (inc. laying the bitumen shingles)

-          Main structure treatment (inc. materials)

-          Electricity (internal) installation (inc. materials)

-          Guttering (PVC) installation (inc. materials)

-          Consumer unit (inc. installation)

-          Lights (inc. bulbs and installation)

-          Sockets (inc. installation)

On your request we will be happy to modify the list by excluding, replacing or adding any particular service or item that you may need. Have any questions? Please contact us.

What is included in the installation service price
The installation service price includes erection of the cabin (inc. walls, flooring, roofboards, windows, doors locks and other related hardware) and laying the type of roofing material that is offered on our website (or very similar).

High quality service
We co-operate with highly skilled log cabin assembly professionals who have vast experience in installing log cabins, wooden garages and carports. They will also be happy to provide you with extra services, such as making a base for you building and guttering, doing the plumbing, electricity, painting and other construction related labour, all for an extremely competitive additional price.

Immediate service
Once you have ordered the installation service, our assembly team will contact you to arrange the installation before your cabin is delivered to you. Normally the installation team arrives to do the job within a couple days of delivery taking place.
